Aqua Mini 400
The AQUA MINI 400 is a compact submersible pump designed for clear water. Ideal for emptying wells, collection tanks, garages, or cellars subject to flooding. It is also suitable for small runoff irrigation and transferring water from reservoirs or swimming pools. Built in AISI 304 stainless steel, it offers durability and corrosion resistance, with built-in thermal protection and an automatic float switch.
Applications
- Emptying of wells, collection tanks, garages or cellars.
- Drainage of areas subject to flooding.
- Small runoff irrigation.
- Transfer of tanks, swimming pools and small water features.
Technical Data
| Voltage | 230 V - 50 Hz |
|---|---|
| Power (P2) | 0.5 HP / 0.37 kW |
| Power (P1) | 0.36 kW |
| Amperage | 1.6 A |
| Capacitor | 8 μF - 450 V |
| Weight | 3.5 kg |
| Discharge (DNM) | 1" 1/4 |
- Emptying of wells, collection tanks, garages or cellars.
- Drainage of areas subject to flooding.
- Small runoff irrigation.
- Transfer of tanks, swimming pools and small water features.
| Material | Stainless Steel AISI 304 (1.4301) |
|---|---|
| Impeller | Stainless Steel AISI 304 (1.4301) |
| Shaft | Stainless Steel AISI 420 |
| Seal | Double mechanical seal in silicon carbide |
| Max Temperature | 35° C |
Note: Click on table rows to highlight and compare models.

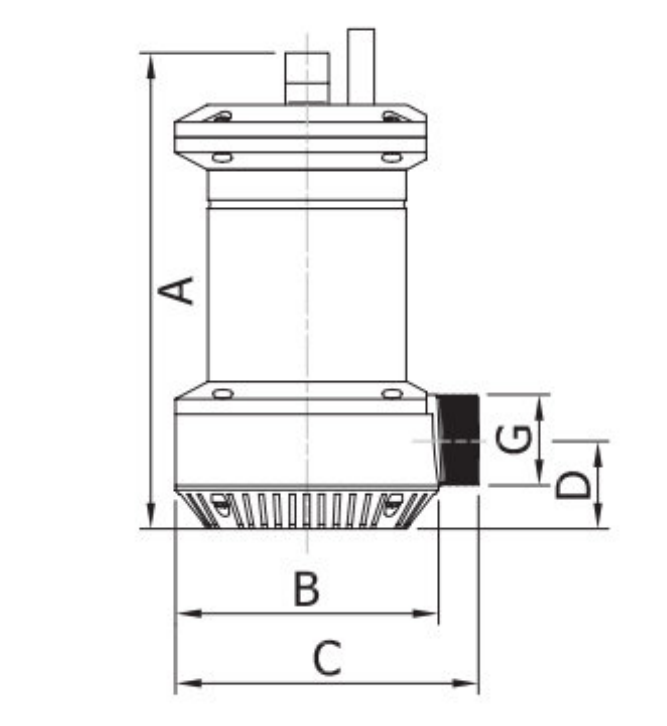

| A (mm) | B (mm) | C (mm) | D (mm) | G | Weight (kg) |
|---|---|---|---|---|---|
| 220 | 122 | 142 | 40 | 1" 1/4 | 3.5 |
Note: Click on table rows to highlight and compare models.
| Model | Motor Details | Flow Rate Q | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kW | HP | Amp (A) | m³/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | 9.6 | |
| Aqua Mini 400 | 0,37 | 0,50 | 1,60 |
Hm (m)
|
7,0 | 5,8 | 4,8 | 4,0 | 3,2 | 2,4 | 1,7 | 0,9 | 0,0 |
