Digital Control Box D123D 230 CDM-2
Digital control box for pump control and protection with digital reading of motor consumption current. Includes protection by electronic thermal relay, protection against phase loss and lack of water (by motor consumption).
Allows regulation of minimum and maximum current intensity, with thermal memory and automatic restart attempts.
Applications
- Domestic and industrial applications.
Technical Data
Characteristics
| Input Voltage | 220 – 230V / 380 - 400V |
|---|---|
| Permissible Voltage Range | +/- 10% |
| Frequency | 50-60 Hz |
| Power Components | DANFOSS |
| Thermal protection | Electronic |
| Current Range | 1-12A, 1-16A, 1-20A, 1-25A |
| Protection degree | IP 54 |
| Temperature | -5ºC / + 45ºC |
| product.max_altitude | 2000m |
| Pollution Level III | Degree III |
| Level Control | Motor consumption |
| Max. Terminal Section | 6 mm² |
Applications
- Domestic and industrial applications.

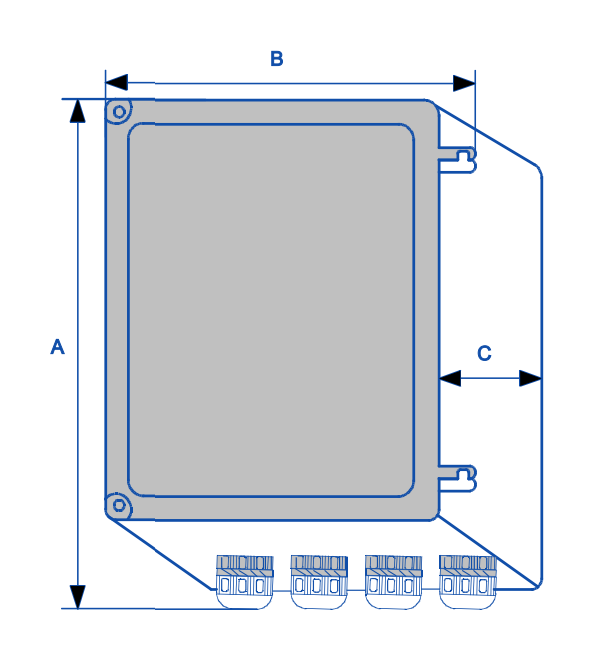

Dimensions
Note: Click on table rows to highlight and compare models.
| Box Model | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| Box Model J | 255 | 215 | 145 |
