Bombas de Fundição 6″ a 10″
As Bombas de Fundição JOVAL (6″ a 10″) são bombas centrífugas multicelulares projetadas para alta performance e robustez extrema. Com caudais até 400 m³/h e altura manométrica até 398 m, são ideais para captação de água em furos profundos, irrigação de grandes áreas e processos industriais exigentes. Construídas com corpo e impulsores em ferro fundido GG25 e componentes internos em aço inoxidável AISI 304, garantem durabilidade em aplicações urbanas, rurais e sistemas de combate a incêndio.
Aplicações
- Captação de água limpa em furos profundos, poços, barragens e lagos.
- Abastecimento urbano e rural.
- Irrigação agrícola de grandes áreas.
- Sistemas de combate a incêndio.
- Processos industriais e sistemas de pressurização.
Dados Técnicos
Especificações Técnicas
| Caudal Máximo | Até 400 m³/h a 2850 rpm |
|---|---|
| Altura Máxima | Até 398 m |
| Boca de Impulsão | 3”, 4”, 5”, 6” conforme o modelo (6″ a 10″) |
| Normas | ISO 9906 |
| Tipo | Bomba centrífuga multicelular |
| Corpo de aspiração e descarga | Ferro fundido cinzento GG25 |
| Impulsor | Ferro fundido cinzento GG25 |
| Veio, filtro e acoplamento | Aço Inoxidável AISI 304 (1.4301) |
| Válvula, calha e parafusos | Aço Inoxidável AISI 304 (1.4301) |
| Casquilhos de desgaste | Borracha anti-fricção com alma metálica |
| Acoplamento | Norma NEMA (1-18-388) |
| Índice de Eficiência (MEI) | ≥ 0,70 |
| Garantia | 24 meses |
Aplicações
- Captação de água limpa em furos profundos, poços, barragens e lagos.
- Abastecimento urbano e rural.
- Irrigação agrícola de grandes áreas.
- Sistemas de combate a incêndio.
- Processos industriais e sistemas de pressurização.

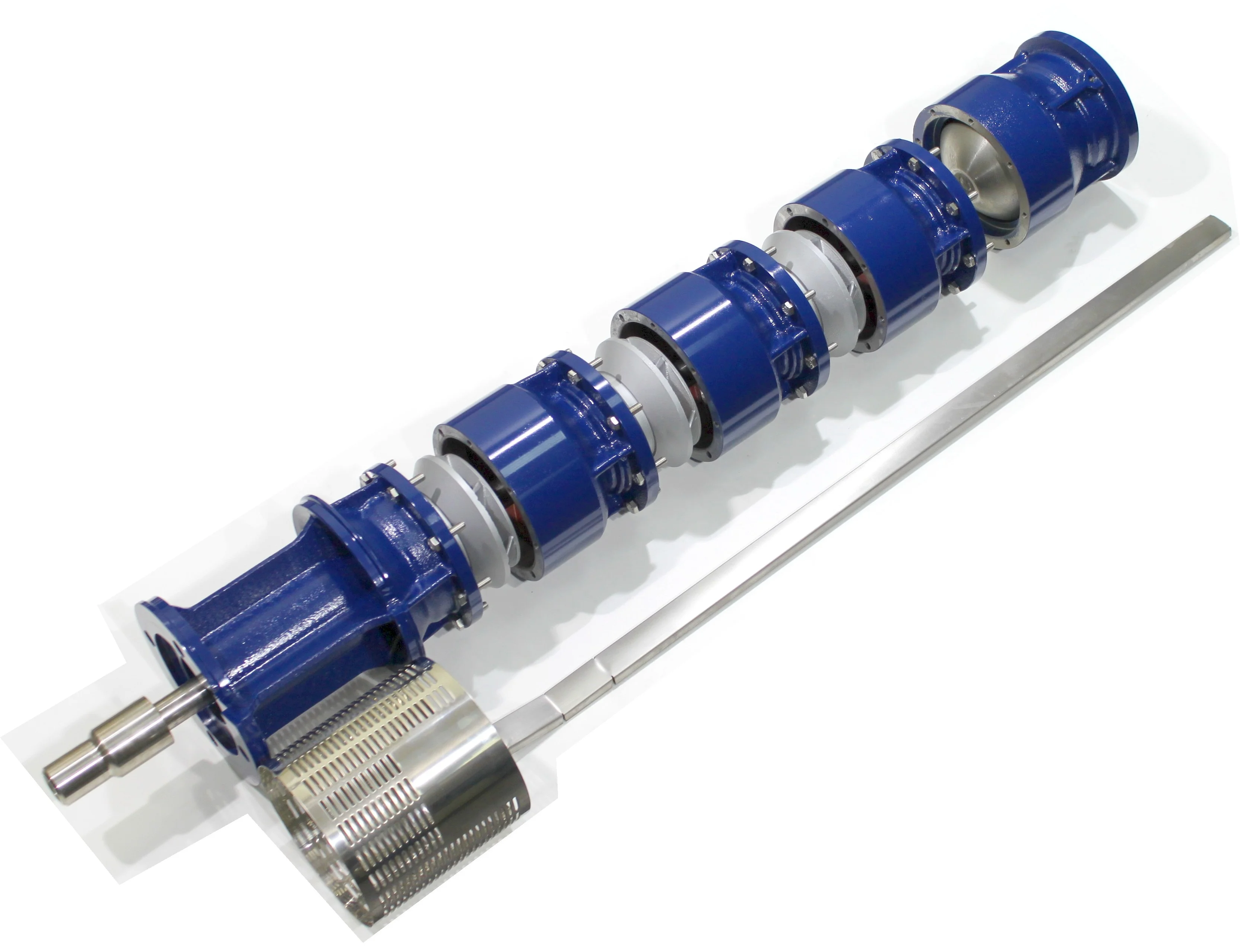

Lista de Materiais
| Pos. | Descrição | Material (Standard) | Material (Bronze) |
|---|---|---|---|
| 1 | Casquilho | Poliuretano | Poliuretano |
| 2 | Válvula | Aço inox. AISI 304 | Aço inox. AISI 304 |
| 3 | O´ring | Borracha nitrílica | Borracha nitrílica |
| 4 | Casquilho (c/ reforço inox.) | Borracha nitrílica c/ inox | Borracha nitrílica c/ inox |
| 5 | Casquilho | Aço inox. AISI 304 | Aço inox. AISI 304 |
| 6 | O´ring | Borracha | Borracha |
| 7 | Turbina | Ferro Fundido GG25 | Bronze B10 |
| 8 | Anel desgaste (reforço inox.) | Borracha nitrílica c/ inox | Borracha nitrílica c/ inox |
| 9 | Difusor | Ferro Fundido GG25 | Bronze B10 |
| 10 | Parafuso DIN 933 | Aço inox. AISI 316 | Aço inox. AISI 316 |
| 11 | Veio | Aço inox. AISI 304 | Aço inox. AISI 316 |
| 12 | Casquilho | Bronze B10 | Bronze B10 |
| 13 | Filtro de aspiração | Aço inox. AISI 304 | Aço inox. AISI 304 |
| 14 | Chaveta | Aço inox. AISI 316 | Aço inox. AISI 316 |
| 15 | Parafuso DIN 912 | Aço inox. AISI 316 | Aço inox. AISI 316 |
| 16 | Cardan | Aço inox. AISI 304 | Aço inox. AISI 316 |
| 17 | O´ring | Borracha | Borracha |
| 18 | Câmara aspirante | Ferro Fundido GG25 | Bronze B10 |
6" Series 650
Nota: Clique nas linhas da tabela para as destacar e comparar modelos.

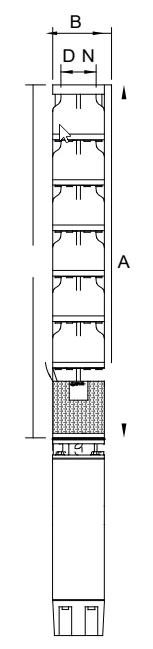

| Modelo | DN | Altura A (mm) | Altura B (mm) | Peso (kg) |
|---|---|---|---|---|
| 650 02 | 3" | 607 | - | 27 |
| 650 03 | 3" | 724 | - | 33 |
| 650 04 | 3" | 841 | - | 39 |
| 650 05 | 3" | 958 | - | 45 |
| 650 06 | 3" | 1075 | - | 51 |
| 650 07 | 3" | 1192 | - | 57 |
| 650 08 | 3" | 1309 | - | 63 |
| 650 09 | 3" | 1426 | - | 69 |
| 650 10 | 3" | 1543 | - | 75 |
| 650 11 | 3" | 1660 | - | 81 |
| 650 12 | 3" | 1777 | - | 87 |
| 650 13 | 3" | 1894 | - | 93 |
| 650 14 | 3" | 2011 | - | 99 |
| 650 15 | 3" | 2128 | - | 105 |
| 650 16 | 3" | 2245 | - | 111 |
| 650 17 | 3" | 2362 | - | 117 |
| 650 18 | 3" | 2479 | - | 122 |
| 650 19 | 3" | 2596 | - | 128 |
| 650 20 | 3" | 2713 | - | 134 |
| 650 21 | 3" | 2830 | - | 140 |
| 650 22 | 3" | 2947 | - | 146 |
| 650 23 | 3" | 3050 | - | 152 |
| 650 24 | 3" | 3167 | - | 158 |
| 650 25 | 3" | 3284 | - | 164 |
6" Series 660
Nota: Clique nas linhas da tabela para as destacar e comparar modelos.
| Modelo | DN | Altura A (mm) | Altura B (mm) | Peso (kg) |
|---|---|---|---|---|
| 660 02R | 3" | 607 | - | 27 |
| 660 03R | 3" | 724 | - | 33 |
| 660 04R | 3" | 841 | - | 39 |
| 660 05R | 3" | 958 | - | 45 |
| 660 06R | 3" | 1075 | - | 51 |
| 660 07R | 3" | 1192 | - | 57 |
| 660 08R | 3" | 1309 | - | 63 |
| 660 09 | 3" | 1426 | - | 69 |
| 660 10R | 3" | 1543 | - | 75 |
| 660 11 | 3" | 1660 | - | 81 |
| 660 12 | 3" | 1777 | - | 87 |
| 660 13 | 3" | 1894 | - | 93 |
| 660 14 | 3" | 2011 | - | 99 |
| 660 15 | 3" | 2128 | - | 105 |
| 660 16 | 3" | 2245 | - | 111 |
| 660 17 | 3" | 2362 | - | 117 |
| 660 18 | 3" | 2479 | - | 122 |
| 660 19 | 3" | 2596 | - | 128 |
| 660 20 | 3" | 2713 | - | 134 |
| 660 21 | 3" | 2830 | - | 140 |
| 660 22 | 3" | 2947 | - | 146 |
6" Series 665
Nota: Clique nas linhas da tabela para as destacar e comparar modelos.
| Modelo | DN | Altura A (mm) | Altura B (mm) | Peso (kg) |
|---|---|---|---|---|
| 665 02 | 3" | 607 | - | 27 |
| 665 03 | 3" | 724 | - | 33 |
| 665 04 | 3" | 841 | - | 39 |
| 665 05 | 3" | 958 | - | 45 |
| 665 06 | 3" | 1075 | - | 51 |
| 665 07 | 3" | 1192 | - | 57 |
| 665 08 | 3" | 1309 | - | 63 |
| 665 09 | 3" | 1426 | - | 69 |
| 665 10 | 3" | 1543 | - | 75 |
| 665 11 | 3" | 1660 | - | 81 |
| 665 12 | 3" | 1777 | - | 87 |
| 665 13 | 3" | 1894 | - | 93 |
| 665 14 | 3" | 2011 | - | 99 |
| 665 15 | 3" | 2128 | - | 105 |
| 665 16 | 3" | 2245 | - | 111 |
| 665 17 | 3" | 2362 | - | 117 |
| 665 18 | 3" | 2479 | - | 122 |
| 665 19 | 3" | 2596 | - | 128 |
| 665 20 | 3" | 2713 | - | 134 |
| 665 21 | 3" | 2830 | - | 140 |
6" Series 675
Nota: Clique nas linhas da tabela para as destacar e comparar modelos.
| Modelo | DN | Altura A (mm) | Altura B (mm) | Peso (kg) |
|---|---|---|---|---|
| 675 01 | 4" | 490 | - | 21 |
| 675 02 | 4" | 607 | - | 27 |
| 675 03 | 4" | 724 | - | 33 |
| 675 04 | 4" | 841 | - | 39 |
| 675 05 | 4" | 958 | - | 45 |
| 675 06 | 4" | 1075 | - | 51 |
| 675 07 | 4" | 1192 | - | 57 |
| 675 08 | 4" | 1309 | - | 63 |
| 675 09 | 4" | 1426 | - | 69 |
| 675 10 | 4" | 1543 | - | 75 |
| 675 11 | 4" | 1660 | - | 81 |
| 675 12 | 4" | 1777 | - | 87 |
| 675 13 | 4" | 1894 | - | 93 |
| 675 14 | 4" | 2011 | - | 99 |
| 675 15 | 4" | 2128 | - | 105 |
| 675 16 | 4" | 2245 | - | 111 |
| 675 17 | 4" | 2362 | - | 117 |
| 675 18 | 4" | 2479 | - | 122 |
7" Series 785
Nota: Clique nas linhas da tabela para as destacar e comparar modelos.
| Modelo | DN | Altura A (mm) | Altura B (mm) | Peso (kg) |
|---|---|---|---|---|
| 785 01 | 4" | 543 | - | 32 |
| 785 02 | 4" | 678 | - | 41 |
| 785 03 | 4" | 813 | - | 51 |
| 785 04 | 4" | 948 | - | 60 |
| 785 05 | 4" | 1083 | - | 70 |
| 785 06 | 4" | 1218 | - | 79 |
| 785 07 | 4" | 1353 | - | 89 |
| 785 08 | 4" | 1488 | - | 98 |
| 785 09 | 4" | 1623 | - | 108 |
| 785 10 | 4" | 1758 | - | 117 |
| 785 11 | 4" | 1893 | - | 127 |
| 785 12 | 4" | 2028 | - | 136 |
| 785 13 | 4" | 2163 | - | 146 |
| 785 14 | 4" | 2298 | - | 155 |
| 785 15 | 4" | 2433 | - | 165 |
| 785 16 | 4" | 2568 | - | 174 |
| 785 17 | 4" | 2703 | - | 184 |
| 785 18 | 4" | 2838 | - | 193 |
| 785 19 | 4" | 2973 | - | 203 |
| 785 20 | 4" | 3108 | - | 212 |
| 785 21 | 4" | 3243 | - | 222 |
| 785 22 | 4" | 3378 | - | 231 |
7" Series 795
Nota: Clique nas linhas da tabela para as destacar e comparar modelos.
| Modelo | DN | Altura A (mm) | Altura B (mm) | Peso (kg) |
|---|---|---|---|---|
| 795 01 | 4" | 543 | - | 32 |
| 795 02 | 4" | 678 | - | 41 |
| 795 03 | 4" | 813 | - | 51 |
| 795 04 | 4" | 948 | - | 60 |
| 795 05 | 4" | 1083 | - | 70 |
| 795 06 | 4" | 1218 | - | 79 |
| 795 07 | 4" | 1353 | - | 89 |
| 795 08 | 4" | 1488 | - | 98 |
| 795 09 | 4" | 1623 | - | 108 |
| 795 10 | 4" | 1758 | - | 117 |
| 795 11 | 4" | 1893 | - | 127 |
| 795 12 | 4" | 2028 | - | 136 |
| 795 13 | 4" | 2163 | - | 146 |
| 795 14 | 4" | 2298 | - | 155 |
| 795 15 | 4" | 2433 | - | 165 |
| 795 16 | 4" | 2568 | - | 174 |
| 795 17 | 4" | 2703 | - | 184 |
| 795 18 | 4" | 2838 | - | 193 |
8" Series 8120
Nota: Clique nas linhas da tabela para as destacar e comparar modelos.
| Modelo | DN | Altura A (mm) | Altura B (mm) | Peso (kg) |
|---|---|---|---|---|
| 8120 01 | 5" | 560 | - | 37 |
| 8120 02 | 5" | 705 | - | 49 |
| 8120 03 | 5" | 850 | - | 61 |
| 8120 04 | 5" | 995 | - | 74 |
| 8120 05 | 5" | 1140 | - | 86 |
| 8120 06 | 5" | 1285 | - | 98 |
| 8120 07 | 5" | 1430 | - | 110 |
| 8120 08 | 5" | 1575 | - | 122 |
| 8120 09 | 5" | 1720 | - | 135 |
| 8120 10 | 5" | 1865 | - | 147 |
| 8120 11 | 5" | 2010 | - | 159 |
| 8120 12 | 5" | 2155 | - | 171 |
| 8120 13 | 5" | 2300 | - | 184 |
| 8120 14 | 5" | 2445 | - | 196 |
8" Series 8150
Nota: Clique nas linhas da tabela para as destacar e comparar modelos.
| Modelo | DN | Altura A (mm) | Altura B (mm) | Peso (kg) |
|---|---|---|---|---|
| 8150 01 | 5" | 560 | - | 37 |
| 8150 02 | 5" | 705 | - | 49 |
| 8150 03 | 5" | 850 | - | 61 |
| 8150 04 | 5" | 995 | - | 74 |
| 8150 05 | 5" | 1140 | - | 86 |
| 8150 06 | 5" | 1285 | - | 98 |
| 8150 07 | 5" | 1430 | - | 110 |
| 8150 08 | 5" | 1575 | - | 122 |
| 8150 09 | 5" | 1720 | - | 135 |
| 8150 10 | 5" | 1865 | - | 147 |
| 8150 11 | 5" | 2010 | - | 159 |
| 8150 12 | 5" | 2155 | - | 171 |
| 8150 13 | 5" | 2300 | - | 184 |
10" Series 10200
Nota: Clique nas linhas da tabela para as destacar e comparar modelos.
| Modelo | DN | Altura A (mm) | Altura B (mm) | Peso (kg) |
|---|---|---|---|---|
| 10200 01D | 6" | 770 | - | 70 |
| 10200 01A | 6" | 770 | - | 70 |
| 10200 02D | 6" | 950 | - | 92 |
| 10200 02C | 6" | 950 | - | 92 |
| 10200 03D | 6" | 1130 | - | 114 |
| 10200 03A | 6" | 1130 | - | 114 |
| 10200 04D | 6" | 1310 | - | 136 |
| 10200 04C | 6" | 1310 | - | 136 |
| 10200 04A | 6" | 1310 | - | 136 |
| 10200 05B | 6" | 1490 | - | 158 |
| 10200 06A | 6" | 1670 | - | 180 |
| 10200 07A | 6" | 1850 | - | 202 |
| 10200 08A | 6" | 2030 | - | 224 |
10" Series 10270
Nota: Clique nas linhas da tabela para as destacar e comparar modelos.
| Modelo | DN | Altura A (mm) | Altura B (mm) | Peso (kg) |
|---|---|---|---|---|
| 10270 05A | 6" | 1490 | - | 158 |
| 10270 06B | 6" | 1670 | - | 180 |
| 10270 06A | 6" | 1670 | - | 180 |
| 10270 07A | 6" | 1850 | - | 202 |
| 10270 08A | 6" | 2030 | - | 224 |
10" Series 10300
Nota: Clique nas linhas da tabela para as destacar e comparar modelos.
| Modelo | DN | Altura A (mm) | Altura B (mm) | Peso (kg) |
|---|---|---|---|---|
| 10300 01E | 6" | 770 | - | 71 |
| 10300 01C | 6" | 770 | - | 71 |
| 10300 01A | 6" | 770 | - | 71 |
| 10300 02D | 6" | 950 | - | 94 |
| 10300 02C | 6" | 950 | - | 94 |
| 10300 02A | 6" | 950 | - | 94 |
| 10300 03E | 6" | 1130 | - | 117 |
| 10300 03D | 6" | 1130 | - | 117 |
| 10300 03B | 6" | 1130 | - | 117 |
| 10300 03A | 6" | 1130 | - | 117 |
| 10300 04C | 6" | 1275 | - | 129 |
| 10300 04A | 6" | 1275 | - | 129 |
| 10300 05B | 6" | 1420 | - | 141 |
| 10300 05A | 6" | 1420 | - | 141 |
| 10300 06B | 6" | 1565 | - | 153 |
Condições de Utilização
- Nunca por a bomba a funcionar em seco. Nem mesmo para testar.
- Necessário instalar camisa de arrefecimento se o poço for consideravelmente maior que a bomba.
- Verificar sentido de rotação em motores trifásicos.
- Instalação obrigatória com tubagem metálica.
- Instalar válvula de retenção no tubo de impulsão.
- Proteção obrigatória: Sobrecarga, Curto-circuito e Funcionamento em seco.
6" Series 650 (Q - Hm)
Nota: Clique nas linhas da tabela para as destacar e comparar modelos.
| Modelo | Detalhes do Motor | Caudal Q | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kW | CV | Amp (A) | m³/h | 0 | 24 | 30 | 36 | 42 | 51 | 57 | 63 | |
| 650 02 | 4,00 | 5,50 | - |
Hm (m)
|
31,0 | 26,0 | 24,0 | 23,0 | 21,0 | 18,0 | 16,0 | 13,0 |
| 650 03 | 5,50 | 7,00 | - | 46,0 | 39,0 | 36,0 | 34,0 | 32,0 | 27,0 | 24,0 | 19,0 | |
| 650 04 | 7,50 | 10,00 | - | 61,0 | 51,0 | 49,0 | 45,0 | 42,0 | 36,0 | 32,0 | 26,0 | |
| 650 05 | 9,30 | 12,50 | - | 77,0 | 64,0 | 61,0 | 56,0 | 53,0 | 46,0 | 40,0 | 32,0 | |
| 650 06 | 11,00 | 15,00 | - | 92,0 | 77,0 | 73,0 | 68,0 | 63,0 | 55,0 | 48,0 | 38,0 | |
| 650 07 | 13,00 | 17,50 | - | 108,0 | 90,0 | 85,0 | 79,0 | 74,0 | 64,0 | 56,0 | 45,0 | |
| 650 08 | 15,00 | 20,00 | - | 123,0 | 103,0 | 97,0 | 90,0 | 84,0 | 73,0 | 64,0 | 51,0 | |
| 650 09 | 18,50 | 25,00 | - | 138,0 | 116,0 | 109,0 | 102,0 | 95,0 | 82,0 | 72,0 | 58,0 | |
| 650 10 | 18,50 | 25,00 | - | 154,0 | 129,0 | 121,0 | 113,0 | 105,0 | 91,0 | 80,0 | 64,0 | |
| 650 11 | 22,00 | 30,00 | - | 169,0 | 141,0 | 134,0 | 124,0 | 116,0 | 100,0 | 88,0 | 70,0 | |
| 650 12 | 22,00 | 30,00 | - | 184,0 | 154,0 | 146,0 | 135,0 | 126,0 | 109,0 | 96,0 | 77,0 | |
| 650 13 | 26,00 | 35,00 | - | 200,0 | 167,0 | 158,0 | 147,0 | 137,0 | 119,0 | 104,0 | 83,0 | |
| 650 14 | 26,00 | 35,00 | - | 215,0 | 180,0 | 170,0 | 158,0 | 147,0 | 128,0 | 112,0 | 90,0 | |
| 650 15 | 30,00 | 40,00 | - | 227,0 | 192,0 | 180,0 | 168,0 | 156,0 | 137,0 | 120,0 | 96,0 | |
| 650 16 | 30,00 | 40,00 | - | 243,0 | 205,0 | 192,0 | 179,0 | 166,0 | 146,0 | 128,0 | 102,0 | |
| 650 17 | 30,00 | 40,00 | - | 258,0 | 218,0 | 204,0 | 190,0 | 177,0 | 155,0 | 136,0 | 109,0 | |
| 650 18 | 37,00 | 50,00 | - | 273,0 | 230,0 | 216,0 | 202,0 | 187,0 | 164,0 | 144,0 | 115,0 | |
| 650 19 | 37,00 | 50,00 | - | 288,0 | 243,0 | 228,0 | 213,0 | 198,0 | 173,0 | 152,0 | 122,0 | |
| 650 20 | 37,00 | 50,00 | - | 303,0 | 256,0 | 240,0 | 224,0 | 208,0 | 182,0 | 160,0 | 128,0 | |
| 650 21 | 37,00 | 50,00 | - | 318,0 | 269,0 | 252,0 | 235,0 | 218,0 | 192,0 | 168,0 | 134,0 | |
| 650 22 | 45,00 | 60,00 | - | 334,0 | 282,0 | 264,0 | 246,0 | 229,0 | 201,0 | 176,0 | 141,0 | |
| 650 23 | 45,00 | 60,00 | - | 349,0 | 294,0 | 276,0 | 258,0 | 239,0 | 210,0 | 184,0 | 147,0 | |
| 650 24 | 45,00 | 60,00 | - | 364,0 | 307,0 | 288,0 | 269,0 | 250,0 | 219,0 | 192,0 | 154,0 | |
| 650 25 | 45,00 | 60,00 | - | 379,0 | 320,0 | 300,0 | 280,0 | 260,0 | 228,0 | 200,0 | 160,0 | |
6" Series 660 (Q - Hm)
Nota: Clique nas linhas da tabela para as destacar e comparar modelos.
| Modelo | Detalhes do Motor | Caudal Q | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kW | CV | Amp (A) | m³/h | 0 | 30 | 42 | 51 | 60 | 66 | 72 | 78 | |
| 660 02R | 4,00 | 5,50 | - |
Hm (m)
|
29,0 | 24,0 | 21,0 | 19,0 | 17,0 | 15,0 | 12,0 | 10,0 |
| 660 03R | 5,50 | 7,00 | - | 44,0 | 35,0 | 32,0 | 29,0 | 25,0 | 22,0 | 19,0 | 15,0 | |
| 660 04R | 7,50 | 10,00 | - | 58,0 | 47,0 | 42,0 | 38,0 | 33,0 | 29,0 | 25,0 | 20,0 | |
| 660 05R | 9,30 | 12,50 | - | 73,0 | 59,0 | 53,0 | 48,0 | 42,0 | 37,0 | 31,0 | 25,0 | |
| 660 06R | 11,00 | 15,00 | - | 87,0 | 71,0 | 63,0 | 57,0 | 50,0 | 44,0 | 37,0 | 29,0 | |
| 660 07R | 13,00 | 17,50 | - | 102,0 | 83,0 | 74,0 | 67,0 | 58,0 | 51,0 | 43,0 | 34,0 | |
| 660 08R | 15,00 | 20,00 | - | 116,0 | 94,0 | 84,0 | 76,0 | 66,0 | 58,0 | 50,0 | 39,0 | |
| 660 09 | 18,50 | 25,00 | - | 140,0 | 114,0 | 101,0 | 90,0 | 76,0 | 66,0 | 54,0 | 41,0 | |
| 660 10R | 18,50 | 25,00 | - | 145,0 | 118,0 | 105,0 | 95,0 | 83,0 | 73,0 | 62,0 | 49,0 | |
| 660 11 | 22,00 | 30,00 | - | 171,0 | 139,0 | 123,0 | 109,0 | 92,0 | 80,0 | 66,0 | 51,0 | |
| 660 12 | 26,50 | 35,00 | - | 186,0 | 152,0 | 134,0 | 119,0 | 101,0 | 88,0 | 72,0 | 55,0 | |
| 660 13 | 26,50 | 35,00 | - | 202,0 | 164,0 | 146,0 | 129,0 | 109,0 | 95,0 | 78,0 | 60,0 | |
| 660 14 | 30,00 | 40,00 | - | 217,0 | 177,0 | 157,0 | 139,0 | 118,0 | 102,0 | 84,0 | 64,0 | |
| 660 15 | 30,00 | 40,00 | - | 233,0 | 190,0 | 168,0 | 149,0 | 126,0 | 110,0 | 90,0 | 69,0 | |
| 660 16 | 37,00 | 50,00 | - | 248,0 | 202,0 | 179,0 | 159,0 | 134,0 | 117,0 | 96,0 | 74,0 | |
| 660 17 | 37,00 | 50,00 | - | 264,0 | 215,0 | 190,0 | 169,0 | 143,0 | 124,0 | 102,0 | 78,0 | |
| 660 18 | 37,00 | 50,00 | - | 279,0 | 228,0 | 202,0 | 179,0 | 151,0 | 131,0 | 108,0 | 83,0 | |
| 660 19 | 37,00 | 50,00 | - | 295,0 | 240,0 | 213,0 | 189,0 | 160,0 | 139,0 | 114,0 | 87,0 | |
| 660 20 | 45,00 | 60,00 | - | 310,0 | 253,0 | 224,0 | 199,0 | 168,0 | 146,0 | 120,0 | 92,0 | |
| 660 21 | 45,00 | 60,00 | - | 326,0 | 266,0 | 235,0 | 209,0 | 176,0 | 153,0 | 126,0 | 97,0 | |
| 660 22 | 45,00 | 60,00 | - | 341,0 | 278,0 | 246,0 | 219,0 | 185,0 | 161,0 | 132,0 | 101,0 | |
6" Series 665 (Q - Hm)
Nota: Clique nas linhas da tabela para as destacar e comparar modelos.
| Modelo | Detalhes do Motor | Caudal Q | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kW | CV | Amp (A) | m³/h | 0 | 36 | 45 | 57.6 | 64.8 | 72 | 82.8 | 90 | |
| 665 02 | 4,00 | 5,50 | - |
Hm (m)
|
30,0 | 24,0 | 22,0 | 19,0 | 17,0 | 15,0 | 11,0 | 8,0 |
| 665 03 | 7,50 | 10,00 | - | 45,0 | 36,0 | 33,0 | 29,0 | 26,0 | 22,0 | 16,0 | 12,0 | |
| 665 04 | 9,30 | 12,50 | - | 60,0 | 48,0 | 44,0 | 38,0 | 34,0 | 30,0 | 22,0 | 16,0 | |
| 665 05 | 11,00 | 15,00 | - | 75,0 | 60,0 | 56,0 | 48,0 | 43,0 | 37,0 | 27,0 | 20,0 | |
| 665 06 | 13,00 | 17,50 | - | 90,0 | 72,0 | 67,0 | 57,0 | 52,0 | 44,0 | 33,0 | 24,0 | |
| 665 07 | 15,00 | 20,00 | - | 105,0 | 84,0 | 78,0 | 67,0 | 60,0 | 52,0 | 38,0 | 28,0 | |
| 665 08 | 18,50 | 25,00 | - | 120,0 | 96,0 | 89,0 | 76,0 | 69,0 | 59,0 | 44,0 | 32,0 | |
| 665 09 | 22,00 | 30,00 | - | 135,0 | 108,0 | 100,0 | 86,0 | 77,0 | 67,0 | 49,0 | 36,0 | |
| 665 10 | 26,50 | 35,00 | - | 150,0 | 120,0 | 111,0 | 96,0 | 86,0 | 74,0 | 55,0 | 40,0 | |
| 665 11 | 26,50 | 35,00 | - | 165,0 | 132,0 | 122,0 | 105,0 | 95,0 | 81,0 | 60,0 | 44,0 | |
| 665 12 | 30,00 | 40,00 | - | 180,0 | 144,0 | 133,0 | 115,0 | 103,0 | 89,0 | 65,0 | 48,0 | |
| 665 13 | 30,00 | 40,00 | - | 195,0 | 156,0 | 144,0 | 124,0 | 112,0 | 96,0 | 71,0 | 52,0 | |
| 665 14 | 37,00 | 50,00 | - | 210,0 | 168,0 | 155,0 | 134,0 | 120,0 | 104,0 | 76,0 | 56,0 | |
| 665 15 | 37,00 | 50,00 | - | 225,0 | 180,0 | 167,0 | 143,0 | 129,0 | 111,0 | 82,0 | 60,0 | |
| 665 16 | 37,00 | 50,00 | - | 240,0 | 192,0 | 178,0 | 153,0 | 138,0 | 118,0 | 87,0 | 64,0 | |
| 665 17 | 37,00 | 50,00 | - | 255,0 | 204,0 | 189,0 | 162,0 | 146,0 | 126,0 | 93,0 | 68,0 | |
| 665 18 | 45,00 | 60,00 | - | 270,0 | 216,0 | 200,0 | 172,0 | 155,0 | 133,0 | 98,0 | 72,0 | |
| 665 19 | 45,00 | 60,00 | - | 285,0 | 228,0 | 211,0 | 181,0 | 163,0 | 141,0 | 104,0 | 76,0 | |
| 665 20 | 45,00 | 60,00 | - | 300,0 | 240,0 | 222,0 | 191,0 | 172,0 | 148,0 | 109,0 | 80,0 | |
| 665 21 | 45,00 | 60,00 | - | 315,0 | 252,0 | 233,0 | 201,0 | 181,0 | 155,0 | 114,0 | 84,0 | |
6" Series 675 (Q - Hm)
Nota: Clique nas linhas da tabela para as destacar e comparar modelos.
| Modelo | Detalhes do Motor | Caudal Q | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kW | CV | Amp (A) | m³/h | 0 | 45 | 66 | 72 | 84 | 90 | 100 | 105 | |
| 675 01 | 4,00 | 5,50 | - |
Hm (m)
|
16,0 | 12,0 | 10,0 | 9,0 | 8,0 | 7,0 | 5,0 | 4,0 |
| 675 02 | 5,50 | 7,50 | - | 31,0 | 24,0 | 20,0 | 19,0 | 15,0 | 13,0 | 10,0 | 8,0 | |
| 675 03 | 9,30 | 12,50 | - | 47,0 | 36,0 | 30,0 | 28,0 | 23,0 | 20,0 | 15,0 | 12,0 | |
| 675 04 | 11,00 | 15,00 | - | 63,0 | 48,0 | 40,0 | 37,0 | 30,0 | 27,0 | 20,0 | 16,0 | |
| 675 05 | 13,00 | 17,50 | - | 78,0 | 61,0 | 50,0 | 46,0 | 38,0 | 33,0 | 25,0 | 20,0 | |
| 675 06 | 15,00 | 20,00 | - | 94,0 | 73,0 | 60,0 | 56,0 | 46,0 | 40,0 | 30,0 | 24,0 | |
| 675 07 | 18,50 | 25,00 | - | 110,0 | 85,0 | 70,0 | 65,0 | 53,0 | 47,0 | 35,0 | 28,0 | |
| 675 08 | 22,00 | 30,00 | - | 125,0 | 97,0 | 80,0 | 74,0 | 61,0 | 53,0 | 40,0 | 32,0 | |
| 675 09 | 22,00 | 30,00 | - | 141,0 | 109,0 | 90,0 | 84,0 | 68,0 | 60,0 | 45,0 | 36,0 | |
| 675 10 | 26,50 | 35,00 | - | 157,0 | 121,0 | 100,0 | 93,0 | 76,0 | 67,0 | 50,0 | 40,0 | |
| 675 11 | 30,00 | 40,00 | - | 172,0 | 133,0 | 110,0 | 102,0 | 84,0 | 73,0 | 55,0 | 44,0 | |
| 675 12 | 30,00 | 40,00 | - | 188,0 | 145,0 | 120,0 | 111,0 | 91,0 | 80,0 | 60,0 | 48,0 | |
| 675 13 | 37,00 | 50,00 | - | 204,0 | 157,0 | 130,0 | 121,0 | 99,0 | 87,0 | 65,0 | 52,0 | |
| 675 14 | 37,00 | 50,00 | - | 220,0 | 169,0 | 140,0 | 130,0 | 106,0 | 94,0 | 70,0 | 56,0 | |
| 675 15 | 37,00 | 50,00 | - | 235,0 | 182,0 | 150,0 | 139,0 | 114,0 | 100,0 | 75,0 | 60,0 | |
| 675 16 | 45,00 | 60,00 | - | 251,0 | 194,0 | 160,0 | 148,0 | 122,0 | 107,0 | 80,0 | 64,0 | |
| 675 17 | 45,00 | 60,00 | - | 267,0 | 206,0 | 170,0 | 158,0 | 129,0 | 114,0 | 85,0 | 68,0 | |
| 675 18 | 45,00 | 60,00 | - | 282,0 | 218,0 | 180,0 | 167,0 | 137,0 | 120,0 | 90,0 | 72,0 | |
7" Series 785 (Q - Hm)
Nota: Clique nas linhas da tabela para as destacar e comparar modelos.
| Modelo | Detalhes do Motor | Caudal Q | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kW | CV | Amp (A) | m³/h | 0 | 54 | 72 | 78 | 84 | 96 | 108 | 120 | |
| 785 01 | 5,50 | 7,50 | - |
Hm (m)
|
22,0 | 16,0 | 14,0 | 13,0 | 12,0 | 10,0 | 8,0 | 5,0 |
| 785 02 | 9,30 | 12,50 | - | 44,0 | 32,0 | 28,0 | 26,0 | 24,0 | 20,0 | 16,0 | 10,0 | |
| 785 03 | 13,00 | 17,50 | - | 66,0 | 49,0 | 42,0 | 39,0 | 36,0 | 30,0 | 23,0 | 15,0 | |
| 785 04 | 18,50 | 25,00 | - | 88,0 | 65,0 | 56,0 | 52,0 | 48,0 | 40,0 | 31,0 | 20,0 | |
| 785 05 | 22,00 | 30,00 | - | 110,0 | 81,0 | 70,0 | 66,0 | 60,0 | 50,0 | 39,0 | 26,0 | |
| 785 06 | 26,50 | 35,00 | - | 132,0 | 97,0 | 84,0 | 79,0 | 72,0 | 60,0 | 47,0 | 31,0 | |
| 785 07 | 30,00 | 40,00 | - | 154,0 | 114,0 | 98,0 | 92,0 | 84,0 | 70,0 | 54,0 | 36,0 | |
| 785 08 | 37,00 | 50,00 | - | 176,0 | 130,0 | 112,0 | 105,0 | 96,0 | 80,0 | 62,0 | 41,0 | |
| 785 09 | 37,00 | 50,00 | - | 199,0 | 146,0 | 126,0 | 118,0 | 109,0 | 90,0 | 70,0 | 46,0 | |
| 785 10 | 45,00 | 60,00 | - | 221,0 | 162,0 | 139,0 | 131,0 | 121,0 | 99,0 | 78,0 | 51,0 | |
| 785 11 | 45,00 | 60,00 | - | 243,0 | 178,0 | 153,0 | 144,0 | 133,0 | 109,0 | 86,0 | 56,0 | |
| 785 12 | 55,00 | 75,00 | - | 265,0 | 195,0 | 167,0 | 157,0 | 145,0 | 119,0 | 93,0 | 61,0 | |
| 785 13 | 55,00 | 75,00 | - | 287,0 | 211,0 | 181,0 | 170,0 | 157,0 | 129,0 | 101,0 | 66,0 | |
| 785 14 | 60,00 | 80,00 | - | 309,0 | 227,0 | 195,0 | 184,0 | 169,0 | 139,0 | 109,0 | 72,0 | |
| 785 15 | 60,00 | 80,00 | - | 331,0 | 243,0 | 209,0 | 197,0 | 181,0 | 149,0 | 117,0 | 77,0 | |
| 785 16 | 67,00 | 90,00 | - | 353,0 | 260,0 | 223,0 | 210,0 | 193,0 | 159,0 | 124,0 | 82,0 | |
| 785 17 | 67,00 | 90,00 | - | 375,0 | 276,0 | 237,0 | 223,0 | 205,0 | 169,0 | 132,0 | 87,0 | |
| 785 18 | 75,00 | 100,00 | - | 397,0 | 292,0 | 251,0 | 236,0 | 217,0 | 179,0 | 140,0 | 92,0 | |
| 785 19 | 75,00 | 100,00 | - | 419,0 | 308,0 | 265,0 | 249,0 | 229,0 | 189,0 | 148,0 | 97,0 | |
| 785 20 | 93,00 | 125,00 | - | 441,0 | 324,0 | 279,0 | 262,0 | 241,0 | 199,0 | 156,0 | 102,0 | |
| 785 21 | 93,00 | 125,00 | - | 463,0 | 341,0 | 293,0 | 275,0 | 253,0 | 209,0 | 163,0 | 107,0 | |
| 785 22 | 93,00 | 125,00 | - | 485,0 | 357,0 | 307,0 | 288,0 | 265,0 | 219,0 | 171,0 | 112,0 | |
7" Series 795 (Q - Hm)
Nota: Clique nas linhas da tabela para as destacar e comparar modelos.
| Modelo | Detalhes do Motor | Caudal Q | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kW | CV | Amp (A) | m³/h | 0 | 54 | 72 | 90 | 102 | 120 | 132 | 144 | |
| 795 01 | 5,50 | 7,50 | - |
Hm (m)
|
22,0 | 17,0 | 15,0 | 14,0 | 12,0 | 10,0 | 8,0 | 6,0 |
| 795 02 | 11,00 | 15,00 | - | 44,0 | 35,0 | 31,0 | 27,0 | 24,0 | 19,0 | 15,0 | 11,0 | |
| 795 03 | 15,00 | 20,00 | - | 66,0 | 52,0 | 46,0 | 41,0 | 36,0 | 29,0 | 23,0 | 17,0 | |
| 795 04 | 22,00 | 30,00 | - | 88,0 | 69,0 | 62,0 | 55,0 | 48,0 | 38,0 | 31,0 | 22,0 | |
| 795 05 | 26,50 | 35,00 | - | 111,0 | 87,0 | 77,0 | 68,0 | 61,0 | 48,0 | 38,0 | 28,0 | |
| 795 06 | 30,00 | 40,00 | - | 133,0 | 104,0 | 93,0 | 82,0 | 73,0 | 57,0 | 46,0 | 33,0 | |
| 795 07 | 37,00 | 50,00 | - | 155,0 | 121,0 | 108,0 | 96,0 | 85,0 | 67,0 | 54,0 | 39,0 | |
| 795 08 | 45,00 | 60,00 | - | 177,0 | 139,0 | 124,0 | 109,0 | 97,0 | 76,0 | 61,0 | 44,0 | |
| 795 09 | 45,00 | 60,00 | - | 199,0 | 156,0 | 139,0 | 123,0 | 109,0 | 86,0 | 69,0 | 50,0 | |
| 795 10 | 55,00 | 75,00 | - | 229,0 | 183,0 | 163,0 | 143,0 | 127,0 | 101,0 | 83,0 | 61,0 | |
| 795 11 | 55,00 | 75,00 | - | 252,0 | 201,0 | 180,0 | 157,0 | 140,0 | 111,0 | 91,0 | 67,0 | |
| 795 12 | 60,00 | 80,00 | - | 275,0 | 219,0 | 196,0 | 171,0 | 153,0 | 121,0 | 99,0 | 73,0 | |
| 795 13 | 67,00 | 90,00 | - | 298,0 | 238,0 | 212,0 | 186,0 | 165,0 | 131,0 | 108,0 | 79,0 | |
| 795 14 | 75,00 | 100,00 | - | 321,0 | 256,0 | 229,0 | 200,0 | 178,0 | 142,0 | 116,0 | 86,0 | |
| 795 15 | 75,00 | 100,00 | - | 344,0 | 274,0 | 245,0 | 214,0 | 191,0 | 152,0 | 124,0 | 92,0 | |
| 795 16 | 93,00 | 125,00 | - | 367,0 | 292,0 | 261,0 | 228,0 | 204,0 | 162,0 | 132,0 | 98,0 | |
| 795 17 | 93,00 | 125,00 | - | 390,0 | 311,0 | 278,0 | 243,0 | 216,0 | 172,0 | 141,0 | 104,0 | |
| 795 18 | 93,00 | 125,00 | - | 413,0 | 329,0 | 294,0 | 257,0 | 229,0 | 182,0 | 149,0 | 110,0 | |
8" Series 8120 (Q - Hm)
Nota: Clique nas linhas da tabela para as destacar e comparar modelos.
| Modelo | Detalhes do Motor | Caudal Q | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kW | CV | Amp (A) | m³/h | 0 | 60 | 78 | 90 | 102 | 120 | 138 | 150 | |
| 8120 01 | 7,50 | 10,00 | - |
Hm (m)
|
28,0 | 23,0 | 20,0 | 19,0 | 18,0 | 15,0 | 12,0 | 10,0 |
| 8120 02 | 15,00 | 20,00 | - | 57,0 | 45,0 | 41,0 | 38,0 | 35,0 | 30,0 | 24,0 | 20,0 | |
| 8120 03 | 22,00 | 30,00 | - | 85,0 | 68,0 | 61,0 | 57,0 | 53,0 | 45,0 | 36,0 | 31,0 | |
| 8120 04 | 30,00 | 40,00 | - | 113,0 | 90,0 | 81,0 | 75,0 | 70,0 | 60,0 | 48,0 | 41,0 | |
| 8120 05 | 37,00 | 50,00 | - | 142,0 | 113,0 | 102,0 | 94,0 | 88,0 | 75,0 | 60,0 | 51,0 | |
| 8120 06 | 45,00 | 60,00 | - | 170,0 | 135,0 | 122,0 | 113,0 | 105,0 | 90,0 | 72,0 | 61,0 | |
| 8120 07 | 55,00 | 75,00 | - | 206,0 | 167,0 | 149,0 | 137,0 | 125,0 | 108,0 | 88,0 | 75,0 | |
| 8120 08 | 60,00 | 80,00 | - | 235,0 | 190,0 | 170,0 | 157,0 | 143,0 | 123,0 | 100,0 | 86,0 | |
| 8120 09 | 67,00 | 90,00 | - | 265,0 | 214,0 | 192,0 | 176,0 | 161,0 | 138,0 | 113,0 | 96,0 | |
| 8120 10 | 75,00 | 100,00 | - | 294,0 | 238,0 | 213,0 | 196,0 | 179,0 | 154,0 | 125,0 | 107,0 | |
| 8120 11 | 75,00 | 100,00 | - | 324,0 | 262,0 | 234,0 | 215,0 | 196,0 | 169,0 | 138,0 | 118,0 | |
| 8120 12 | 93,00 | 125,00 | - | 353,0 | 285,0 | 255,0 | 235,0 | 214,0 | 184,0 | 150,0 | 129,0 | |
| 8120 13 | 93,00 | 125,00 | - | 383,0 | 309,0 | 277,0 | 254,0 | 232,0 | 200,0 | 163,0 | 139,0 | |
| 8120 14 | 93,00 | 125,00 | - | 412,0 | 333,0 | 298,0 | 274,0 | 250,0 | 215,0 | 175,0 | 150,0 | |
8" Series 8150 (Q - Hm)
Nota: Clique nas linhas da tabela para as destacar e comparar modelos.
| Modelo | Detalhes do Motor | Caudal Q | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kW | CV | Amp (A) | m³/h | 0 | 90 | 120 | 138 | 150 | 162 | 180 | 204 | |
| 8150 01 | 9,30 | 12,50 | - |
Hm (m)
|
28,0 | 21,0 | 18,0 | 15,0 | 14,0 | 12,0 | 9,0 | 6,0 |
| 8150 02 | 18,50 | 25,00 | - | 56,0 | 42,0 | 35,0 | 31,0 | 28,0 | 24,0 | 18,0 | 11,0 | |
| 8150 03 | 30,00 | 40,00 | - | 83,0 | 64,0 | 53,0 | 46,0 | 41,0 | 36,0 | 28,0 | 17,0 | |
| 8150 04 | 37,00 | 50,00 | - | 111,0 | 85,0 | 70,0 | 62,0 | 55,0 | 48,0 | 37,0 | 22,0 | |
| 8150 05 | 45,00 | 60,00 | - | 139,0 | 106,0 | 88,0 | 77,0 | 69,0 | 60,0 | 46,0 | 28,0 | |
| 8150 06 | 55,00 | 75,00 | - | 168,0 | 129,0 | 110,0 | 98,0 | 88,0 | 78,0 | 62,0 | 40,0 | |
| 8150 07 | 67,00 | 90,00 | - | 195,0 | 150,0 | 128,0 | 114,0 | 102,0 | 90,0 | 72,0 | 47,0 | |
| 8150 08 | 75,00 | 100,00 | - | 223,0 | 171,0 | 147,0 | 130,0 | 117,0 | 103,0 | 82,0 | 53,0 | |
| 8150 09 | 83,00 | 110,00 | - | 251,0 | 193,0 | 165,0 | 146,0 | 131,0 | 116,0 | 92,0 | 60,0 | |
| 8150 10 | 93,00 | 125,00 | - | 279,0 | 214,0 | 183,0 | 163,0 | 146,0 | 129,0 | 103,0 | 67,0 | |
| 8150 11 | 110,00 | 150,00 | - | 307,0 | 236,0 | 202,0 | 179,0 | 160,0 | 142,0 | 113,0 | 73,0 | |
| 8150 12 | 130,00 | 175,00 | - | 335,0 | 257,0 | 220,0 | 195,0 | 175,0 | 155,0 | 123,0 | 80,0 | |
| 8150 13 | 130,00 | 175,00 | - | 363,0 | 278,0 | 238,0 | 211,0 | 190,0 | 168,0 | 133,0 | 87,0 | |
10" Series 10200 (Q - Hm)
Nota: Clique nas linhas da tabela para as destacar e comparar modelos.
| Modelo | Detalhes do Motor | Caudal Q | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kW | CV | Amp (A) | m³/h | 0 | 132 | 156 | 180 | 198 | 216 | 240 | 258 | |
| 10200 01D | 15,00 | 20,00 | - |
Hm (m)
|
35,0 | 26,0 | 25,0 | 23,0 | 20,0 | 20,0 | 17,0 | 15,0 |
| 10200 01A | 18,50 | 25,00 | - | 40,0 | 30,0 | 28,0 | 27,0 | 25,0 | 23,0 | 21,0 | 18,0 | |
| 10200 02D | 30,00 | 40,00 | - | 66,0 | 52,0 | 48,0 | 44,0 | 40,0 | 36,0 | 32,0 | 28,0 | |
| 10200 02C | 37,00 | 50,00 | - | 71,0 | 57,0 | 52,0 | 48,0 | 44,0 | 40,0 | 35,0 | 30,0 | |
| 10200 03D | 45,00 | 60,00 | - | 96,0 | 76,0 | 69,0 | 62,0 | 56,0 | 50,0 | 44,0 | 37,0 | |
| 10200 03A | 55,00 | 75,00 | - | 111,0 | 88,0 | 83,0 | 76,0 | 70,0 | 64,0 | 57,0 | 49,0 | |
| 10200 04D | 60,00 | 80,00 | - | 127,0 | 102,0 | 94,0 | 83,0 | 76,0 | 68,0 | 58,0 | 50,0 | |
| 10200 04C | 67,00 | 90,00 | - | 143,0 | 108,0 | 100,0 | 90,0 | 83,0 | 77,0 | 67,0 | 60,0 | |
| 10200 04A | 75,00 | 100,00 | - | 145,0 | 117,0 | 109,0 | 100,0 | 93,0 | 86,0 | 74,0 | 64,0 | |
| 10200 05B | 93,00 | 125,00 | - | 182,0 | 148,0 | 137,0 | 127,0 | 117,0 | 106,0 | 91,0 | 82,0 | |
| 10200 06A | 110,00 | 150,00 | - | 217,0 | 175,0 | 163,0 | 150,0 | 140,0 | 130,0 | 112,0 | 98,0 | |
| 10200 07A | 130,00 | 175,00 | - | 255,0 | 205,0 | 192,0 | 177,0 | 165,0 | 150,0 | 128,0 | 113,0 | |
| 10200 08A | 150,00 | 200,00 | - | 288,0 | 234,0 | 217,0 | 197,0 | 180,0 | 165,0 | 145,0 | 130,0 | |
10" Series 10270 (Q - Hm)
Nota: Clique nas linhas da tabela para as destacar e comparar modelos.
| Modelo | Detalhes do Motor | Caudal Q | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kW | CV | Amp (A) | m³/h | 0 | 180 | 210 | 225 | 240 | 270 | 300 | 312 | |
| 10270 01D | 18,50 | 25,00 | - |
Hm (m)
|
29,0 | 20,0 | 18,0 | 17,0 | 16,0 | 13,0 | 8,0 | 4,0 |
| 10270 01B | 26,50 | 35,00 | - | 37,0 | 28,0 | 26,0 | 25,0 | 24,0 | 21,0 | 18,0 | 16,0 | |
| 10270 01A | 30,00 | 40,00 | - | 43,0 | 33,0 | 30,0 | 29,0 | 28,0 | 25,0 | 21,0 | 19,0 | |
| 10270 02C | 45,00 | 60,00 | - | 67,0 | 51,0 | 47,0 | 44,0 | 42,0 | 37,0 | 30,0 | 25,0 | |
| 10270 02B | 55,00 | 75,00 | - | 74,0 | 57,0 | 53,0 | 50,0 | 48,0 | 42,0 | 36,0 | 33,0 | |
| 10270 02A | 60,00 | 80,00 | - | 85,0 | 66,0 | 61,0 | 58,0 | 55,0 | 51,0 | 43,0 | 37,0 | |
| 10270 03C | 66,00 | 90,00 | - | 101,0 | 77,0 | 71,0 | 66,0 | 63,0 | 56,0 | 45,0 | 38,0 | |
| 10270 03B | 75,00 | 100,00 | - | 110,0 | 85,0 | 79,0 | 75,0 | 71,0 | 62,0 | 53,0 | 49,0 | |
| 10270 03A | 81,00 | 110,00 | - | 128,0 | 99,0 | 91,0 | 87,0 | 83,0 | 76,0 | 64,0 | 56,0 | |
| 10270 04B | 93,00 | 125,00 | - | 147,0 | 113,0 | 105,0 | 100,0 | 95,0 | 83,0 | 71,0 | 65,0 | |
| 10270 04A | 110,00 | 150,00 | - | 167,0 | 128,0 | 119,0 | 113,0 | 107,0 | 95,0 | 83,0 | 75,0 | |
| 10270 05A | 130,00 | 175,00 | - | 208,0 | 160,0 | 148,0 | 142,0 | 133,0 | 118,0 | 103,0 | 94,0 | |
| 10270 06A | 150,00 | 200,00 | - | 250,0 | 192,0 | 178,0 | 170,0 | 160,0 | 142,0 | 124,0 | 113,0 | |
10" Series 10300 (Q - Hm)
Nota: Clique nas linhas da tabela para as destacar e comparar modelos.
| Modelo | Detalhes do Motor | Caudal Q | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kW | CV | Amp (A) | m³/h | 0 | 150 | 180 | 240 | 270 | 300 | 330 | 351 | |
| 10300 01E | 26,50 | 35,00 | - |
Hm (m)
|
33,0 | 27,0 | 25,0 | 22,0 | 20,0 | 17,0 | 13,0 | 7,0 |
| 10300 01C | 30,00 | 40,00 | - | 38,0 | 32,0 | 30,0 | 27,0 | 24,0 | 22,0 | 19,0 | 15,0 | |
| 10300 01A | 45,00 | 60,00 | - | 45,0 | 37,0 | 35,0 | 31,0 | 29,0 | 27,0 | 24,0 | 19,0 | |
| 10300 02B/E | 52,00 | 70,00 | - | 67,0 | 58,0 | 55,0 | 47,0 | 43,0 | 38,0 | 33,0 | 27,0 | |
| 10300 02C | 55,00 | 75,00 | - | 76,0 | 64,0 | 61,0 | 55,0 | 50,0 | 45,0 | 37,0 | 31,0 | |
| 10300 02A | 67,00 | 90,00 | - | 88,0 | 75,0 | 71,0 | 64,0 | 58,0 | 53,0 | 47,0 | 41,0 | |
| 10300 03D | 75,00 | 100,00 | - | 98,0 | 85,0 | 80,0 | 70,0 | 64,0 | 57,0 | 50,0 | 43,0 | |
| 10300 03C | 83,00 | 110,00 | - | 107,0 | 93,0 | 88,0 | 78,0 | 71,0 | 64,0 | 55,0 | 48,0 | |
| 10300 03A/B | 93,00 | 125,00 | - | 123,0 | 104,0 | 98,0 | 88,0 | 82,0 | 76,0 | 67,0 | 58,0 | |
| 10300 04B | 110,00 | 150,00 | - | 154,0 | 134,0 | 127,0 | 113,0 | 104,0 | 96,0 | 85,0 | 73,0 | |
| 10300 04A | 130,00 | 175,00 | - | 173,0 | 147,0 | 141,0 | 125,0 | 116,0 | 106,0 | 95,0 | 84,0 | |
| 10300 05A | 150,00 | 200,00 | - | 213,0 | 175,0 | 167,0 | 150,0 | 137,0 | 125,0 | 110,0 | 97,0 | |
