JOVAL 4 inch water motor
Categories: Submersible Motors

JOVAL 4″ Water-Filled Motor

4" NEMA standard submersible motors, in AISI 304 stainless steel, ideal for wells, tanks, irrigation and pressure systems. Available from 0.5 to 10 HP, offering high durability, operation up to 300 m depth and IP68 protection.

Download Tech Sheet (PDF)
4″ NEMA standard submersible motors, in AISI 304 stainless steel, ideal for wells, tanks, irrigation, and pressurization systems. Available from 0.5 to 10 HP, offering high durability, operation up to 300 m depth, and IP68 protection.

Applications

  • Water supply in domestic installations
  • Civil and industrial systems use
  • Agricultural irrigation
  • Clean water abstraction from deep boreholes, wells, dams and lakes.
  • Water tanks and reservoirs
  • Fire-fighting systems.
  • Hydraulic pressure systems

Calculate sizing

Technical Data

Type Motor submersível encapsulado 4"
Standard NEMA 4"
Voltage Monofásico 220/230 V, 50 Hz; Trifásico 380/415 V, 50 Hz
Material Carcaça e tampa inferior em aço inoxidável 304
Stator Cobre puro Classe H (200 °C), encapsulado
Bearings Rolamentos silenciosos de alta precisão
Seal Vedantes mecânicos de alta precisão
Connector Cabo removível tipo plug
Insulation Classe H (200 °C)

Component Material
Upper cover 304 SS
Lower cover 304 SS
Stator sleeve 304 SS
Shaft extension 431 SS
Fasteners 304 SS
Seal cover Nitrile rubber
Seal Nitrile rubber lip
Diaphragm Nitrile rubber
Diaphragm cover 304 SS
Deflector POM
Cable XLPE
Cable potting Epoxy
Cable nut 304 SS

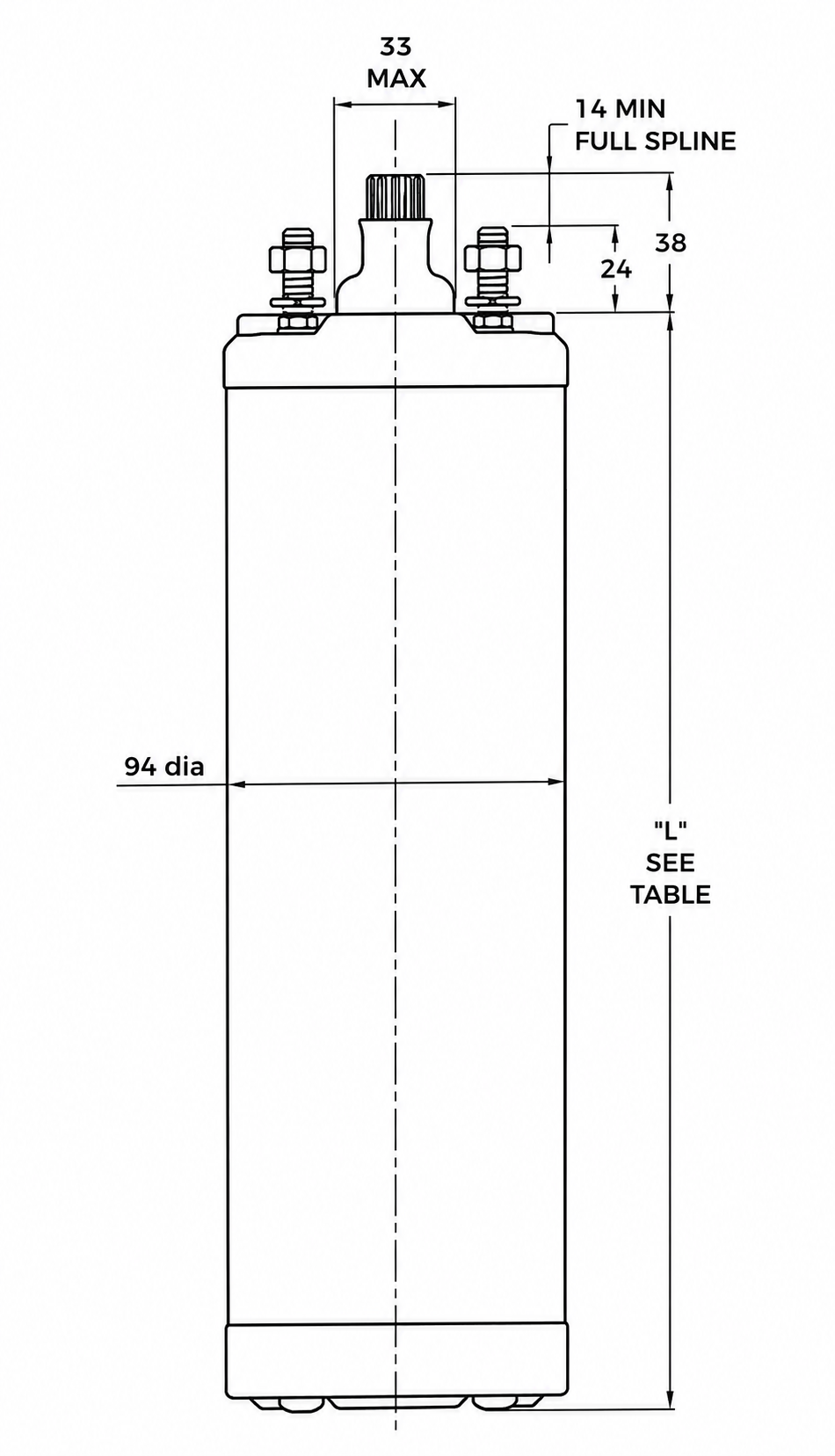

Dimensions diagram
Code Model kW HP Voltage Amperage Capacitor (uF) cosΦ rpm Comprimento mm Axial load (N) Weight (kg)
2034701037 J4AG-S050 0,37 0,5 1x230 - - - - 301 2000 9,7
2034701055 J4AG-S075 0,55 0,75 1x230 4,2 25 0,97 2850 326 2000 Adicionado em breve
2034701075 J4AG-S100 0,75 1 1x230 5,6 30 0,95 2830 346 2000 11,7
2034701110 J4AG-S150 1,1 1,5 1x230 7,9 40 0,99 2830 396 2000 Adicionado em breve
2034701150 J4AG-S200 1,5 2 1x230 10,3 50 0,98 2830 431 3000 14,6
2034701220 J4AG-S300 2,2 3 1x230 15 70 0,98 2830 511 3000 20,2

* Cables included. Capacitor NOT included.

Code Model kW HP Voltage Amperage Capacitor (uF) cosΦ rpm Comprimento mm Axial load (N) Weight (kg)
2034702037 J4AG2F-S050 0,37 0,5 1x230 - - - - 337 Adicionado em breve 9,5
2034702055 J4AG2F-S075 0,55 0,75 1x230 4,2 25 0,97 2850 362 Adicionado em breve 9,5
2034702075 J4AG2F-S100 0,75 1 1x230 5,6 30 0,95 2850 382 Adicionado em breve 11,7
2034702110 J4AG2F-S150 1,1 1,5 1x230 7,9 40 0,99 2850 432 Adicionado em breve 13,7
2034702150 J4AG2F-S200 1,5 2 1x230 Adicionado em breve Adicionado em breve Adicionado em breve Adicionado em breve Adicionado em breve Adicionado em breve Adicionado em breve

Code Model kW HP Voltage Amperage Capacitor (uF) cosΦ rpm Comprimento mm Axial load (N) Weight (kg)
2034703037 J4AG-T050 0,37 0,5 3x380/415 1,2 - 0,76 2850 301 3500 9,1
2034703055 J4AG-T075 0,55 0,75 3x380/415 1,7 - 0,76 2850 316 3500 9,9
2034703075 J4AG-T100 0,75 1 3x380/415 2,2 - 0,75 2850 346 3500 11,3
2034703110 J4AG-T150 1,1 1,5 3x380/415 3,2 - 0,75 2850 366 3500 12,1
2034703150 J4AG-T200 1,5 2 3x380/415 4,2 - 0,76 2850 396 3500 13,6
2034703220 J4AG-T300 2,2 3 3x380/415 6 - 0,77 2850 467 3500 16,8
2034703300 J4AG-T400 3 4 3x380/415 8 - 0,78 2850 512 6500 20,5
2034703306 J4AG-T400 3 4 3x380/415 8 - 0,78 2850 512 6500 20,5
2034703400 J4AG-T550 4 5,5 3x380/415 10,2 - 0,81 2850 591 6500 21,5
2034703550 J4AG-T750 5,5 7,5 3x380/415 14,2 - 0,79 2850 691 6500 26,3

Code Model kW HP Voltage Amperage Capacitor (uF) cosΦ rpm Comprimento mm Axial load (N) Weight (kg)
2034704110 J4AGDT-T150 1,1 1,5 3~230 Adicionado em breve - Adicionado em breve Adicionado em breve Adicionado em breve Adicionado em breve Adicionado em breve
2034704150 J4AGDT-T200 1,5 2 3~230 Adicionado em breve - Adicionado em breve Adicionado em breve Adicionado em breve Adicionado em breve Adicionado em breve
2034704220 J4AGDT-T300 2,2 3 3~230 Adicionado em breve - Adicionado em breve Adicionado em breve Adicionado em breve Adicionado em breve Adicionado em breve
