Pressure Tanks
Pressure Tanks without Membrane
AISI 304 membrane-free pressure tanks, JOVAL-made in Portugal.
Applications
- Urban and rural water supply.
- Industrial processes and pressurization systems.
- Agricultural irrigation and gardens.
- Hydropneumatic systems.
- Tratamento de águas
Technical Data
| Material | Stainless Steel AISI 304 (1.4301) |
|---|---|
| Membrane | Sem Membrana |
| Standards | European Directive 2014/68/EU (Pressure Equipment) |

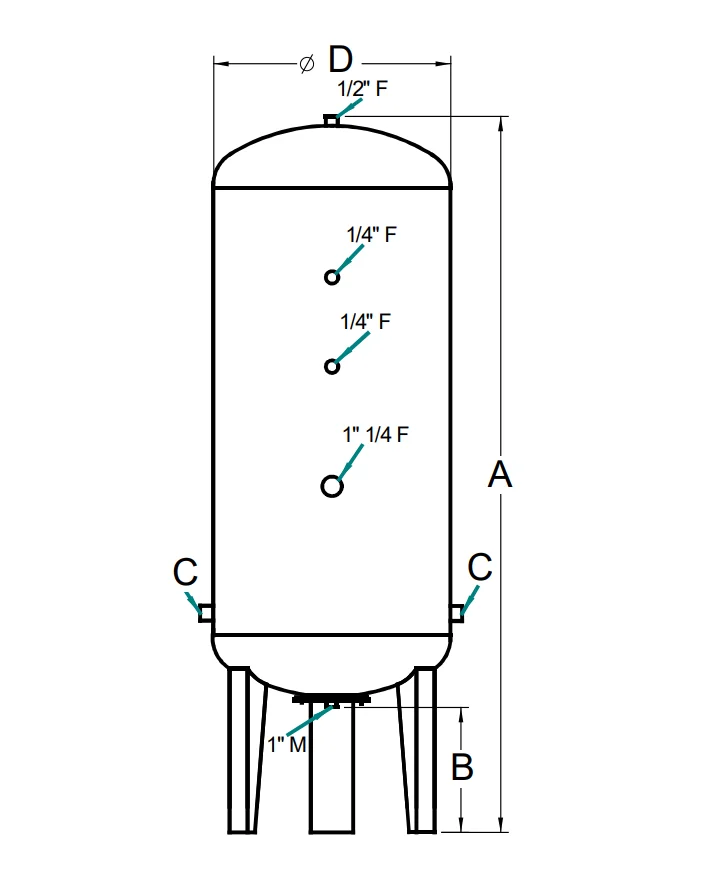

| Model | Height A (mm) | Connection Height (mm) | Inlet / Outlet C | Diameter D (mm) | Maximum Pressure (Bar) | Weight (kg) |
|---|---|---|---|---|---|---|
| 60 VI | 800 | 160 | 1" M | 400 | 8 | 10 |
| 100 VI | 1215 | 160 | 1" M | 400 | 8 | 15 |
| 150 VI | 1250 | 190 | 1" 1/4 M | 480 | 8 | 18,4 |
| 200 VI | 1500 | 195 | 1" 1/4 M | 480 | 6 | 21,8 |
| 300 VI | 1700 | 220 | 1" 1/4 M | 540 | 6 | 31,6 |
| 400 VI | 1600 | 220 | 1" 1/4 M | 635 | 6 | 50 |
| 600 VI | 2095 | 220 | 1" 1/4 M | 635 | 6 | 67 |
| 750 VI | 1950 | 220 | 2" M | 790 | 6 | 75 |
| 1000 VI | 2500 | 245 | 2" M | 790 | 6 | 85 |

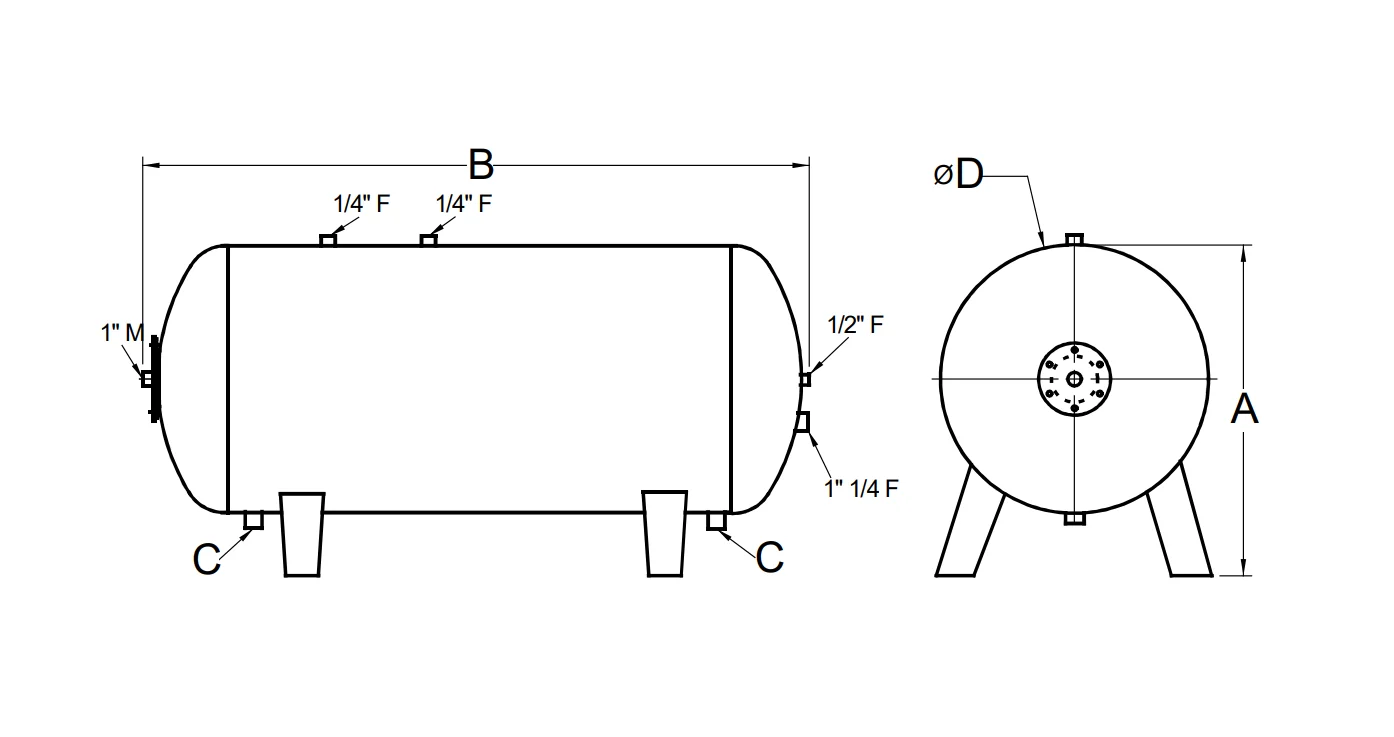

| Model | Length mm A (mm) | Connection Height (mm) | Inlet / Outlet C | Diameter D (mm) | Maximum Pressure (Bar) | Weight (kg) |
|---|---|---|---|---|---|---|
| 100 HI | 985 | 160 | 1" M | 400 | 8 | 14,2 |
| 200 HI | 1150 | 160 | 1" 1/4 M | 480 | 6 | 27 |
| 300 HI | 1300 | 190 | 1" 1/4 M | 540 | 6 | 33 |
- The system must include a pressure-limiting safety device.
- Recommended periodic verification (biannually).
- Proibido perfurar ou soldar o reservatório
- 3-year warranty against manufacturing defects.
